Brand Name : HANYU
Model Number : NEC-85C
Certification : ISO9001
Place of Origin : China
MOQ : 30pieces
Price : Negotiable
Payment Terms : L/C, T/T
Supply Ability : 3000pieces/month.
Delivery Time : 15-35days
Packaging Details : Case
Cutting range : 85mm Cu/Al cable and armored cable
Capacity : 3.0Ah
Charging time : 45minutes
Cutting force : 120KN
Stroke : 41mm
Type : Electric Power Cable Cutting Tool
Lineman Tools NEC-85C Battery Powered Cable Cutter Electric Power Cable Cutting Tool
Technical Data
| Model | NEC-40A | NEC-50A | NEC-55A | NEC-85A | NEC-85C |
| Cutting force | 60KN | 70KN | 120KN | 60KN | 120KN |
| Cutting range | 40mm Cu/Al cable and armored cable | 50mm Cu/Al cable and armored cable | 50mm Cu/Al cable and armored cable | 85mm Cu/Al cable and armored cable | 85mm Cu/Al cable and armored cable |
| 40mm ACSR cable | 50mm ACSR cable | 50mm ACSR cable | |||
| Stroke | 42mm | 52mm | 60mm | 92mm | 41mm |
| Voltage | 18V | 18V | 18V | 18V | 18V |
| Capacity | 3.0Ah | 3.0Ah | 3.0Ah | 3.0Ah | 3.0Ah |
| Charging time | 45minutes | 45minutes | 45minutes | 45minutes | 45minutes |
| Package | Plastic case | Plastic case | Plastic case | Plastic case | Plastic case |
| Accessories | |||||
| Blade | 1set | ||||
| Battery | 2pcs | ||||
| Charger | 1pc(AC110-240V, 50-60Hz) | ||||
| Sealing ring of cylinder | 1set | ||||
| Sealing ring of safety valve | 1set | ||||
|
| ![]() |
|
|

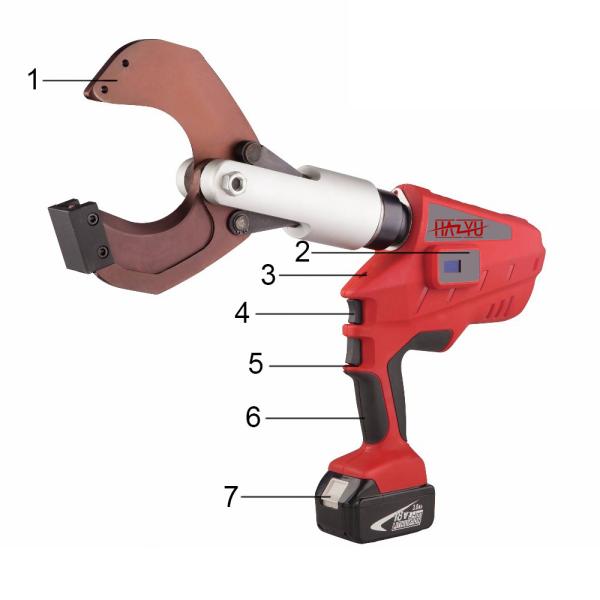

Lineman Tools NEC-85C Battery Powered Cable Cutter Electric Power Cable Cutting Tool Images |
